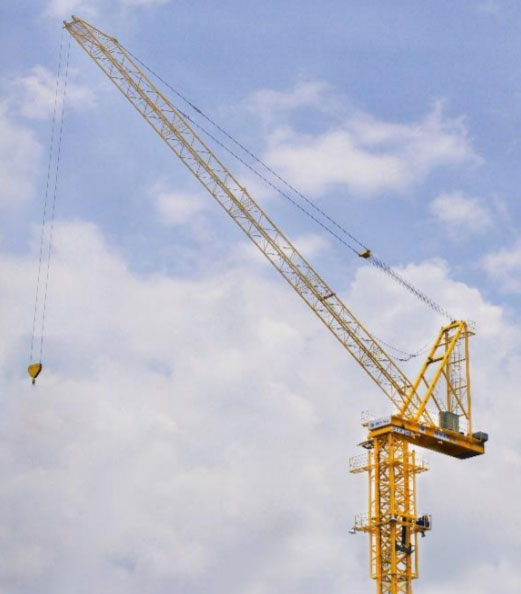

타 입 무인 러핑 크레인
최대 하중 2.9 톤
최대 Jib 길이 40 m
End 하중 1.6 톤
자립고 36 m
소개자료

Load Capa

Jib Max
Capacity
Radius & Capacity
m 24.0 30.0 32.0 33.0 35.0 37.0 38.0 40.0
40 m 2.9 ton kg 2900 2900 2900 2788 2629 2486 2421 2300
35 m 2.9 ton kg 2900 2900 2900 2900 2700
30 m 2.9 ton kg 2900 2900
24 m 2.9 ton kg 2900

Specification

Free Standing 36 m
Max Install Height 130 m
Hoist Speed 30/ 55 m/min
18.5 kwx 4P 380 V
60 Hz
Wire Drum :350m / ø 12mm(19x7 IWRC B Grade)Non Rotating
Reducer 4180Nm, i=1/35
Brake Spring Close Disc Brake
Luffing Speed 4.2 m/min
18.5 kwx 4P Wire Drum :200m / ø 12mm(6xFi(25) IWRC C Grade)
Reducer 3200Nm, i=1/35
Brake Spring Close Disc Brake
Slewing Speed 0~0.5 rev/min 3.75 kwx 2 EA
Reducer i=1/187

국토교통부

무인크레인 제작 지정업체
