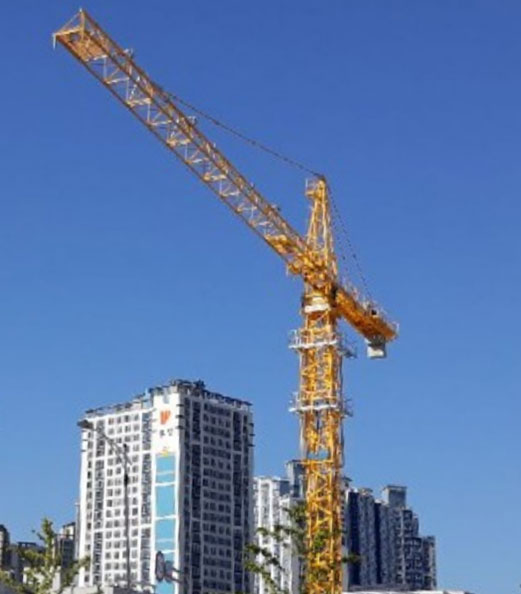

타 입 무인 T형 크레인
최대 하중 2.9 톤
최대 Jib 길이 55 m
End 하중 2.2 톤
자립고 40.65 m (HUH)
소개자료

Load Capa

Jib Max
Capacity
Radius & Capacity
m 35 38 40 41 43 45 46 48 50 51 53 55
55 m 2.5~37m 2.9 ton kg 2900 2900 2900 2890 2810 2670 2630 2520 2420 2370 2280 2200
50 m 2.5~41m 2.9 ton kg 2900 2900 2900 2900 2900 2780 2720 2600 2500
45 m 2.5~41m 2.9 ton kg 2900 2900 2900 2900 2900 2800
40 m 2.5~40m 2.9 ton kg 2900 2900 2900
35 m 2.5~35m 2.9 ton kg 2900

Specification

Free Standing 40.65 m (HUH)
Max Install Height 130 m
Hoist Speed 15/ 30/ 44m/min
(NOVA-4K 컨트롤러)
Inverter 18.5 kw / 4P

Main : 380V / 60 Hz

Control : 110V / 60Hz

Main Cable : PNCT 16mm² X 4C Main

Breaker : 125A

Wire Rope
350m / ø 12mm
15/ 44m/min
(F25-7K 컨트롤러)
Reducer 4180Nm, 42.3rpm, i=1/35
Brake Spring Close-Disc Brake
( 29kg*m, DC 190V )
Trolley Speed 15/ 30/ 60m/min
(NOVA-4K 컨트롤러)
3.7 kw / 6P Reeving Wire
80+120m / ø 8mm
( 6XFi(25)IWRC )
15/ 60m/min
(F25-7K 컨트롤러)
Reducer 2650Nm, i=1/46
Brake Spring Close-Disc Brake
( 12kg*m, DC 170V )
Slewing Speed 0 ~ 0.6 rev/mim 5.5 kw x 2EA
Reducer 9000Nm, i=1/162
Brake Spring Close-Disc Brake
( 100Nm, DC 190V )
Climbing Hyd. Unit 80L Tank, p=165kg/cm² 5.5 kw / 4P
Hyd. Cylinder ø110 x ø180 x 1480st
